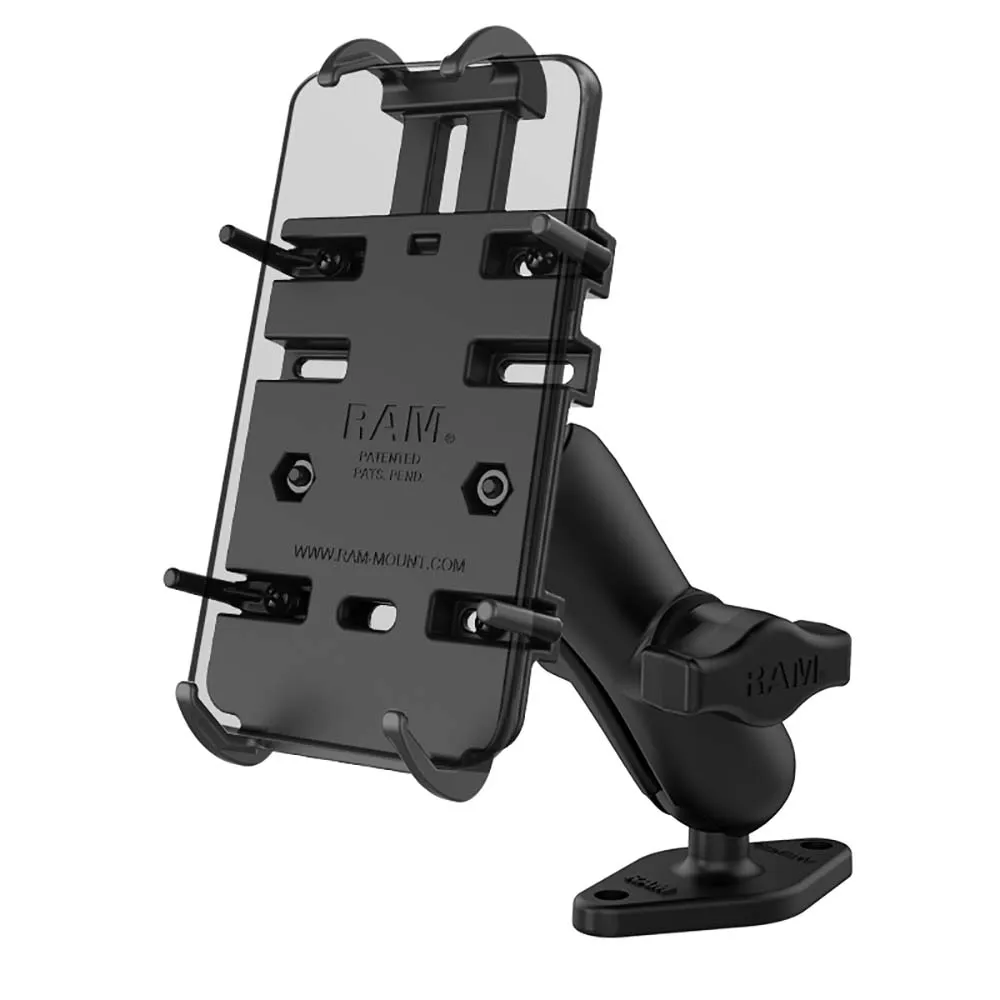

RAM® Quick-Grip™ Phone Mount with Diamond Base

The RAM Quick-Grip™ Flat Surface Mount consists of a 2-hole diamond drill-down base, a double socket arm, and a spring-loaded cradle for supporting most phones. Integrating the industry standard AMPS hole pattern, this mount can connect to any flat surface or to the side of the RAM Tough-Tray™. The double ball and socket design provide adjustment points at both ends of the socket arm with the turn of a single knob, allowing you to set your phone to the optimal viewing position.

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.

Features:

• HOLDER DIMENSIONS: Height Range: 4.75" - 5.75", Width Range: 2.19" - 3.25", Max Depth: .72"
• SOCKET-TO-SOCKET LENGTH: 3"
• HOLE PATTERN: 2-Hole AMPS: 1.912"
• PLATE SIZE: 2.43" x 1.31"
• BALL/SOCKET SIZE: B Size (1")
• WEIGHT CAPACITY: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
• MATERIALS: Marine-grade aluminum, High strength composite
• PACKAGING TYPE: Poly Bag
• WEIGHT: 0.63 lbs.
